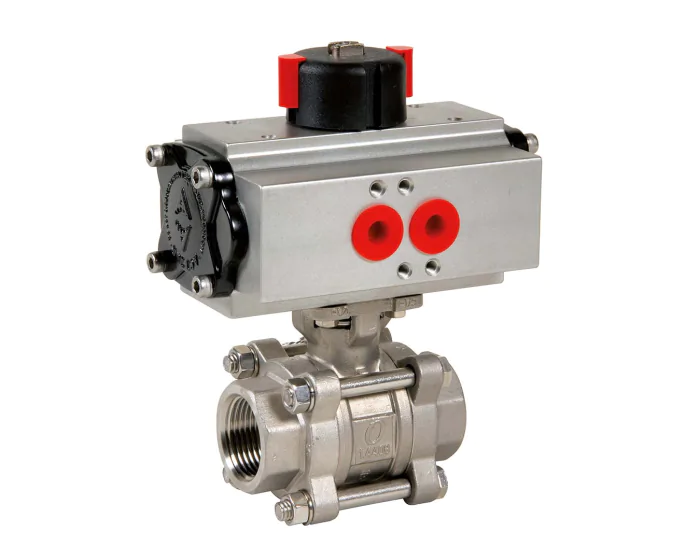

The 746XS series stainless steel ball valve has a CF8M body and ball. It is actuated with pneumatic actuation ACTREG ADA/ASR. Direct mounting.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' BSP FF Double acting | 272642015100 | S1002545 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' BSP FF Spring return | 272642016100 | S1002546 |
€239.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' BSP FF Double acting | 272643015100 | S1002547 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' BSP FF Spring return | 272643016100 | S1002548 |
€247.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' BSP FF Double acting | 272644015100 | S1002549 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' BSP FF Spring return | 272644016101 | S1002550 |
€247.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 BSP FF Double acting | 272645015100 | S1002551 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 BSP FF Spring return | 272645016102 | S1002552 |
€283.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 BSP FF Double acting | 272646015101 | S1002553 |
€287.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 BSP FF Spring return | 272646016103 | S1002554 |
€366.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' BSP FF Double acting | 272647015102 | S1002555 |
€363.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' BSP FF Spring return | 272647016104 | S1002556 |
€462.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 BSP FF Double acting | 272648015102 | S1002557 |
€614.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 BSP FF Spring return | 272648016104 | S1002558 |
€714.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' BSP FF Double acting | 272649015103 | S1002559 |
€787.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' BSP FF Spring return | 272649016105 | S1002560 |
€943.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN100 - 4'' BSP FF Double acting | 272650015104 | S1002561 |
€1,219.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN100 - 4'' BSP FF Spring return | 272650016105 | S1002562 |
€1,326.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' Double acting Welding BW | 272662015100 | S1002563 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' Spring return Welding BW | 272662016100 | S1002564 |
€239.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' Double acting Welding BW | 272663015100 | S1002565 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' Spring return Welding BW | 272663016100 | S1002566 |
€247.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' Double acting Welding BW | 272664015100 | S1002567 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' Spring return Welding BW | 272664016101 | S1002568 |
€247.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 Double acting Welding BW | 272665015100 | S1002569 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 Spring return Welding BW | 272665016102 | S1002570 |
€283.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 Double acting Welding BW | 272666015101 | S1002571 |
€287.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' Double acting Welding BW | 272667015102 | S1002572 |
€363.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' Spring return Welding BW | 272667016104 | S1002573 |
€462.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 Double acting Welding BW | 272668015102 | S1002574 |
€614.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 Spring return Welding BW | 272668016104 | S1002575 |
€714.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' Double acting Welding BW | 272669015103 | S1002576 |
€787.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' Spring return Welding BW | 272669016105 | S1002577 |
€943.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN100 - 4'' Double acting Welding BW | 272670015104 | S1002578 |
€1,219.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN100 - 4'' Spring return Welding BW | 272670016105 | S1002579 |
€1,326.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' Double acting Welding SW | 272682015100 | S1002580 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN15 - 1/2'' Spring return Welding SW | 272682016100 | S1002581 |
€239.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' Double acting Welding SW | 272683015100 | S1002582 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN20 - 3/4'' Spring return Welding SW | 272683016100 | S1002583 |
€247.36
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' Double acting Welding SW | 272684015100 | S1002584 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN25 - 1'' Spring return Welding SW | 272684016101 | S1002585 |
€247.94
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 Double acting Welding SW | 272685015100 | S1002586 |
€219.90
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN32 - 1''1/4 Spring return Welding SW | 272685016102 | S1002587 |
€283.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 Double acting Welding SW | 272686015101 | S1002588 |
€287.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN40 - 1''1/2 Spring return Welding SW | 272686016103 | S1002589 |
€366.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' Double acting Welding SW | 272687015102 | S1002590 |
€363.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN50 - 2'' Spring return Welding SW | 272687016104 | S1002591 |
€462.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 Double acting Welding SW | 272688015102 | S1002592 |
€614.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN65 - 2''1/2 Spring return Welding SW | 272688016104 | S1002593 |
€714.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' Double acting Welding SW | 272689015103 | S1002594 |
€787.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN80 - 3'' Spring return Welding SW | 272689016105 | S1002595 |
€943.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full DN100 - 4'' Double acting Welding SW | 272690015104 | S1002596 |
€1,219.91
(excl. btw)
|
add to cart |
